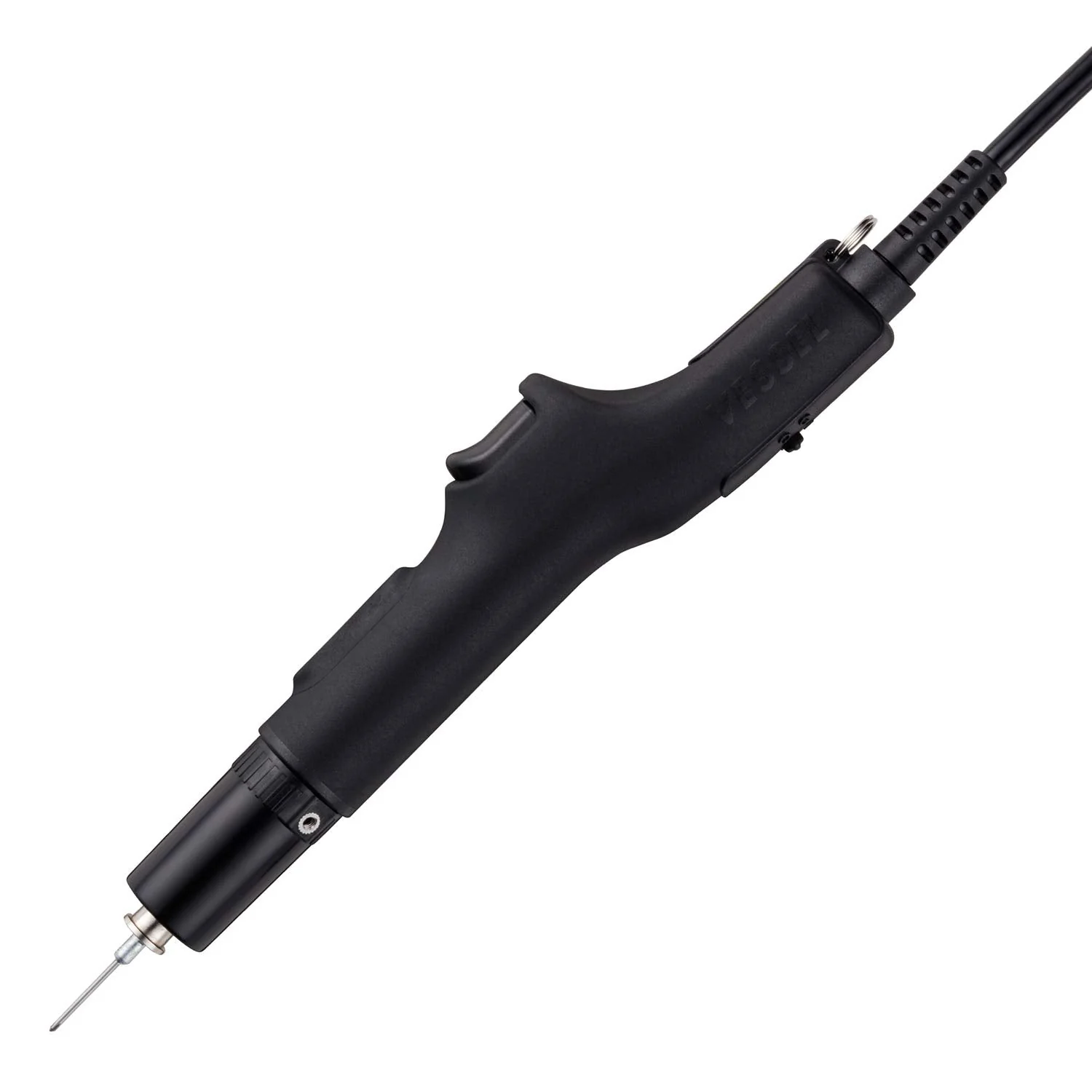

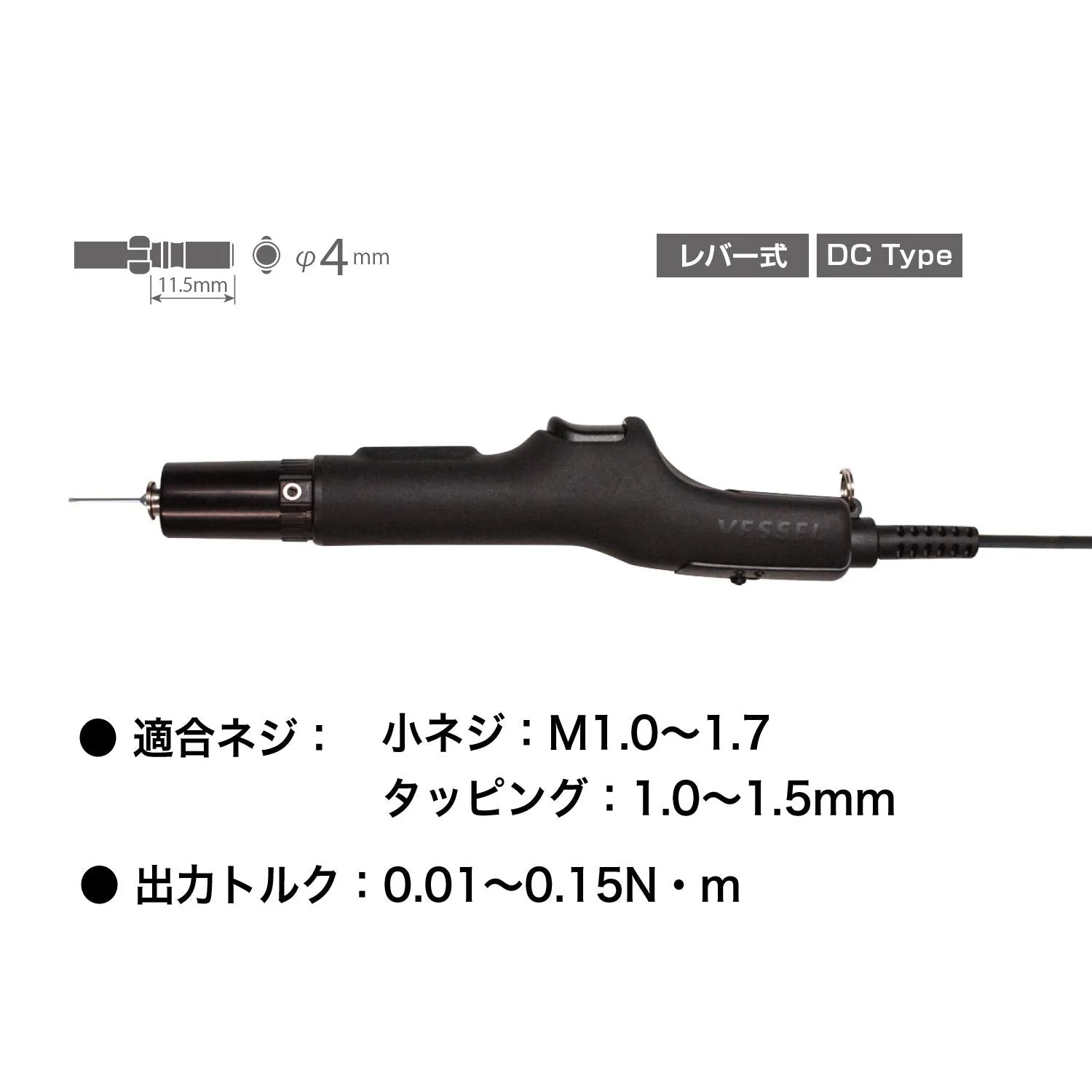

VESSEL Electric Screwdriver VE-1500EPA D73Φ4mm
Product Description
This high-precision electric screwdriver is designed for small-scale fastening tasks, offering an output torque range of 0.01 to 0.15 N-m. It is compatible with small screws (M1.0 to M1.7) and tapping screws (1.0 to 1.5 mm). The device features a slotless brushless motor, which enhances tightening accuracy, efficiency, and maintainability. Its ergonomic design includes a shock-absorbing gel pad for a firm grip, making it easy to use.
Product Specification
Output Torque Range: 0.01~0.15 N-m
Compatible Screws: Small screws (M1.0~M1.7), Tapping screws (1.0~1.5 mm)
Torque Adjustment Sleeve: 24 steps x 5 graduations
No-load Rotation Speed: HI/1000 min-1, LO/700 min-1
Rating: DC12V 15W
Cable Length: 2 m
Material: PC+elastomer
Operating Temperature/Humidity: 0~40℃, 10~80% RH
Surface Resistance: 1.0×105~1.0×1010 Ω
Included Bits: D73 +0×1.4×40 (1 pc), +0×1.7×40 (1 pc)
Features
Slotless Brushless Motor: Improves tightening accuracy, efficiency, and maintainability.
Ergonomic Design: Easy-to-use with a shock-absorbing gel pad for a firm grip.
Precise Torque Adjustment: 16 steps x 8 scales for precise adjustment.
Tamper-resistant Sleeve: Prevents accidental operation of adjustment.
Magnetic Switch: Reduces wear and tear on parts.
Integrated Power Cord: Prevents breakdowns when the connector is detached or pulled.
Controller Installation: The included controller has an R-cut on the back for easy installation on the cell stand pipe.
Included Accessories
Main Unit: With power cord
Controller: VCT-20
AC Cable: 1.8 m
Anti-tangle Sleeve: 1 pc
Set Screws: 2 pcs (M3 x 3)
Hex Wrench: H1.5
Conversion Adapter: 3P2P (1 pc)
Conversion Cord: 3P/6P
Instruction Manual: Included
Controller VCT-20 Specification
Rating: AC100-240V 50/60Hz 31-42VA
Secondary Power: DC9V/12V 1.0A
Dimensions: 72 x 170 x 40 mm
Weight: 230 g
Applicable Standard: PSE
Compatible Models: VE-1500EPA, VE-2000EPA
Original: $421.28
-70%$421.28
$126.38More Images
