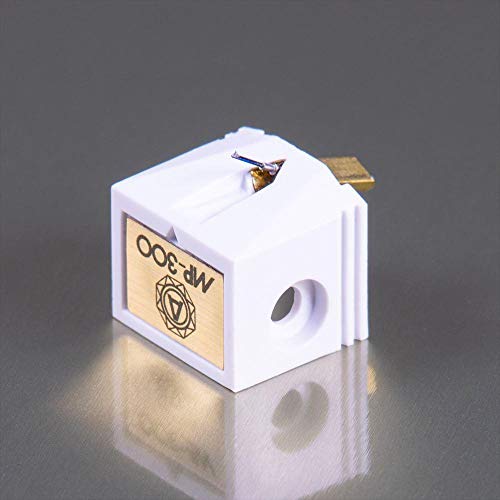

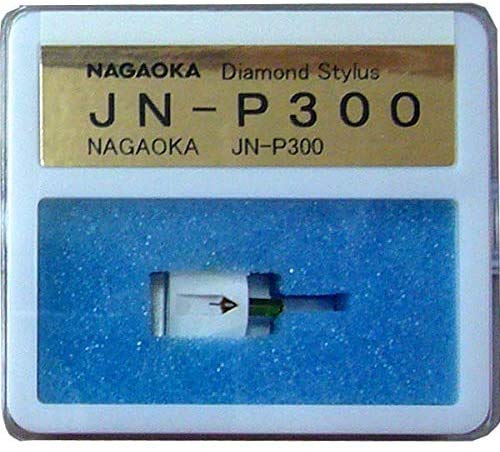

NAGAOKA MP-300H Replacement Stylus JN-P300
Product Description
This product is a high-quality replacement needle designed specifically for the NAGAOKA "MP-300(H)" model. It features an output voltage of 3mV at 5cm/SEC, ensuring clear and precise audio reproduction. The frequency response ranges from 20Hz to 25,000KHz, capturing a wide spectrum of sound. With a load resistance of 47KΩ and a load capacitance of 100pF, it is engineered to deliver optimal performance. The needle tip is crafted from diamond in an elliptical shape measuring 0.4×0.7mil, designed for superior tracking and reduced record wear. The recommended needle pressure is between 1.3 to 1.8g, allowing for precise playback without damaging your records.
Product Specification
- Output Voltage: 3mV (5cm/SEC)
- Frequency Response: 20Hz to 25,000KHz
- Load Resistance: 47KΩ
- Load Capacitance: 100pF
- Needle Tip: 0.4×0.7mil ellipse, diamond
- Appropriate Needle Pressure: 1.3 to 1.8g
More Images
NAGAOKA MP-300H Replacement Stylus JN-P300
Product Description
This product is a high-quality replacement needle designed specifically for the NAGAOKA "MP-300(H)" model. It features an output voltage of 3mV at 5cm/SEC, ensuring clear and precise audio reproduction. The frequency response ranges from 20Hz to 25,000KHz, capturing a wide spectrum of sound. With a load resistance of 47KΩ and a load capacitance of 100pF, it is engineered to deliver optimal performance. The needle tip is crafted from diamond in an elliptical shape measuring 0.4×0.7mil, designed for superior tracking and reduced record wear. The recommended needle pressure is between 1.3 to 1.8g, allowing for precise playback without damaging your records.
Product Specification
- Output Voltage: 3mV (5cm/SEC)
- Frequency Response: 20Hz to 25,000KHz
- Load Resistance: 47KΩ
- Load Capacitance: 100pF
- Needle Tip: 0.4×0.7mil ellipse, diamond
- Appropriate Needle Pressure: 1.3 to 1.8g
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Product Description
This product is a high-quality replacement needle designed specifically for the NAGAOKA "MP-300(H)" model. It features an output voltage of 3mV at 5cm/SEC, ensuring clear and precise audio reproduction. The frequency response ranges from 20Hz to 25,000KHz, capturing a wide spectrum of sound. With a load resistance of 47KΩ and a load capacitance of 100pF, it is engineered to deliver optimal performance. The needle tip is crafted from diamond in an elliptical shape measuring 0.4×0.7mil, designed for superior tracking and reduced record wear. The recommended needle pressure is between 1.3 to 1.8g, allowing for precise playback without damaging your records.
Product Specification
- Output Voltage: 3mV (5cm/SEC)
- Frequency Response: 20Hz to 25,000KHz
- Load Resistance: 47KΩ
- Load Capacitance: 100pF
- Needle Tip: 0.4×0.7mil ellipse, diamond
- Appropriate Needle Pressure: 1.3 to 1.8g
