ELECOM USB Type-C Hub Docking Station 8-in-1 with Fixed Stand PD-ready 100W USB3.1 Silver DST-C23SV/EC

Product Description

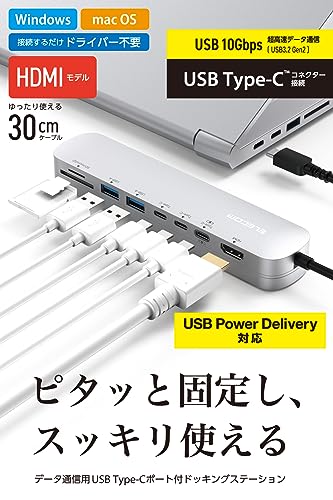

This docking station connects to your PC via a USB Type-C(TM) connector, enabling the connection of USB devices and HDMI displays. It supports ultra high-speed data transfer rates of up to 10Gbps (theoretical value) thanks to its compatibility with USB 10Gbps (USB3.2(Gen2)). The device is equipped with two USB Type-C(TM) ports for data communication, a USB Type-C(TM) port supporting USB Power Delivery with up to 100W of power (85W maximum output), and two USB Standard-A ports supporting USB 10Gbps (USB3.2(Gen2)). Additionally, it features an HDMI port for video output and SD/microSD card slots for memory card access. The aluminum housing offers excellent heat dissipation and noise resistance, while the slim design enhances portability. The included stand can be fixed to the desk with double-sided tape, allowing for easy attachment and detachment of the main unit. This docking station is designed for convenience and efficiency, with all ports located on one side to minimize desk clutter.

Product Specification

- Compatible OS: Windows 11/10, macOS Ventura 13/Monterey 12, iPadOS 16

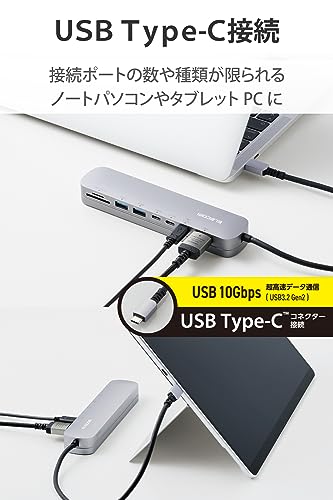

- Connector Specifications (Upstream): USB Type-C(TM) [USB 10Gbps (USB3.2(Gen2))], USB Power Delivery compatible (max. input 100W / max. output 85W), DisplayPort(TM) Alt mode
- USB port (downstream): 1: USB Type-C(TM) [USB 10Gbps (USB3.2(Gen2))] x 2 (Data communication only, video output not supported)

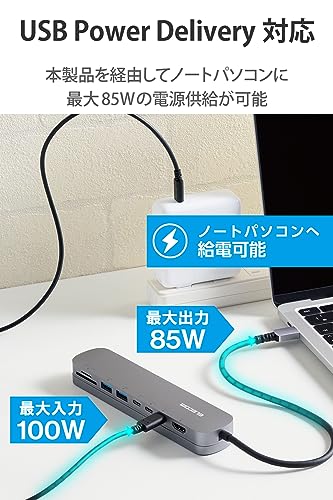

- USB port (downstream): 2: USB Type-C(TM) x 1 (Max. output power 85W, USB Power Delivery port for charging only)
- USB downstream ports: 3: USB Standard-A [USB 10Gbps (USB3.2(Gen2)), power supply: 2 ports total 4.5W (5V/0.9A)] x 2
- Video output port (downstream): HDMI x 1 (supports resolutions up to 4K/60Hz)
- Card reader (downstream): SD and microSD memory card slots, supporting various classes and UHS-I
- Power source: Bus power
- Cable length: Approx. 30 cm
- Color: Silver

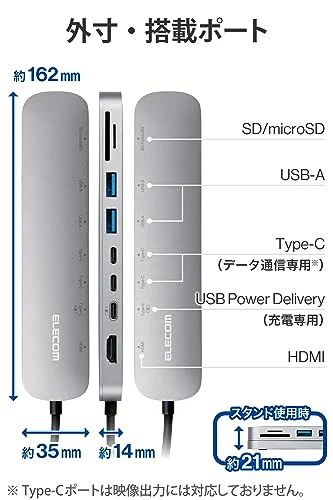

- Dimensions: Product body (excluding the stand): approx. 162 mm (W) x 35 mm (D) x 14 mm (H); Product body + stand: Approx. 162 mm (W) x 35 mm (D) x 21 mm (H)
- Operating environment: Temperature 5~40℃, humidity 30~80% (No condensation)
- Warranty period: 1 year
- Accessories: Stand for fixing, double-sided tape for fixing × 2 pcs

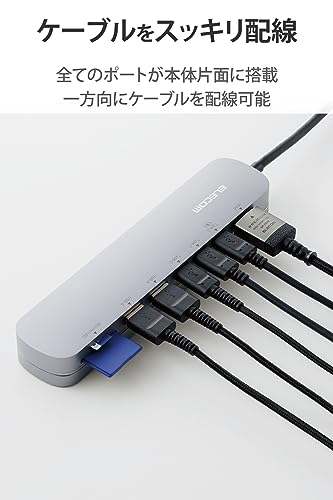

Usage

The docking station is designed for direct connection to the USB Type-C(TM) terminal on the main unit of the PC. It is not intended for use with a USB hub or expansion board. The device supports charging via USB Type-C(TM) for PCs that support USB Power Delivery. It is important to note that the docking station does not operate on the system screen or BIOS screen before OS startup.
